[BC] DA Systems 12 - 14 - 21 towers

[PeterH5322]

>As I recall at the time KLIF  was constructed it was the first 12 tower used
>as one pattern.  I believe the Storer station in Detriot had 12 tower but
>used
>them in combinations between day and night but not all 12 in one pattern.

The 5 kW night array used all twelve, with field ratios, W to E, of 1.0,
2.0, 2.0 and 1.0.

The three towers N to S had the usual field ratios of 1.0, 2.0 and 1.0,
or pretty close to those.



>I was told by our consultants that there was an application filed for a 14
>tower array somewhere in the west.  I am unaware if this site as constructed.

There was barely enough land for the original 12 towers, let alone 15,
which would have been required for a 5 by 3.

If 15, then 10 kW or perhaps 25 kW was contemplated, but it would have to
be one of those as this was still in the "discrete power" days, and there
was only 5, 10, 25 and 50 kW to choose from.

As it was, the east-most part of the site was sold to K-Mart Corp, for
use as a parking lot, and the east-most three towers were removed.

See ...

<http://www.topozone.com/map.asp?lat=42.23144&lon=-83.19947&s=25&size=m&u=2
&datum=nad27&layer=DRG>

... where I have re-oriented the reference to the current reference, not
the old one.

As can be seen, if three more towers were added to the site, those towers
would be abutting the main N-S thoroughfare, but there does indeed appear
to be enough room for fifteen towers, in a 5 by 3 configuration.

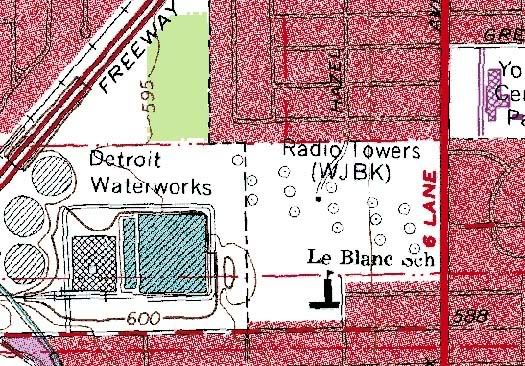

This ...

<http://img.photobucket.com/albums/v390/peterh5322/WJBK_Fifteen_Tower.jpg>

... idealization demonstrates that a fifteen tower, 5 by 3 configuration
was just barely feasible, while retaining the original twelve towers.

As to whether Storer could have afforded the high cost of such a plant,
well, that's another matter.


For, in the long run, it was very fortuitous that WTOP screwed with its
night pattern, thereby allowing WLQV to upgrade from 3 kW and nine towers
to 10 kW and the same nine towers, all at WTOP's and KSTP's expense!
