[BC] Assistance with a tall tower
Richard Fry
rfry at adams.net
Thu Nov 18 09:54:50 CST 2010
> 1240Khz on a guyed 310 foot tall / two foot face triangular tower.
> Any "guestimate" on the series feed R and j ?
______________
By a quick NEC analysis, a ballpark estimate is about 350 +j 360 ohms.

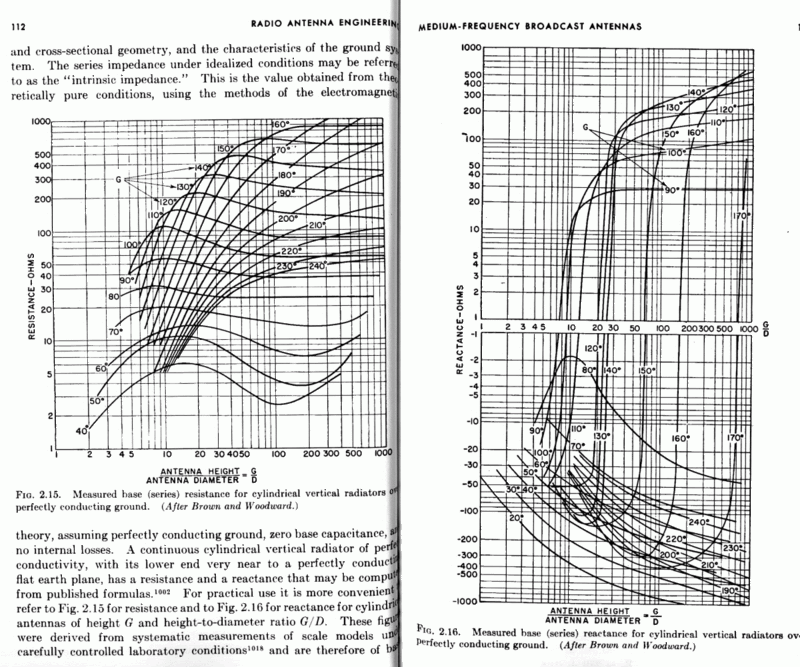

The charts in Laport's "Radio Antenna Engineering" show about the same thing
(link below).
http://i62.photobucket.com/albums/h85/rfry-100/Laport_Scans.gif
The IDF at 1 km for 1 kW of applied power should be about 340 mV/m.
RF
