[BC] Ground system

[Richard Fry]

>A Franklin is defined as 1/2 + 1/2 wavelength center fed.

However the currents on the upper and lower sections of a classic Franklin
are in phase, but the currents on each side of a center-fed dipole are 180°
out of phase.

A conventional center-fed dipole needs no r-f ground -- but a Franklin does,
because essentially it is two end-fed monopoles in a collinear array.

>I'd always heard that to get free-space performance out of a dipole, it had
>to be several wavelengths above earth ground.  Which would be kinda hard to
>do at lambda = 300 meters.

A horizontally polarized dipole needs to be well elevated from the earth for
its radiation pattern to resemble the free space form.

A vertically polarized dipole near the earth has a radiation pattern very
similar to a 1/4-wave, series-fed monopole (link below).  The issue with
using one is getting power to the feedpoint without radiation from the
transmission line.

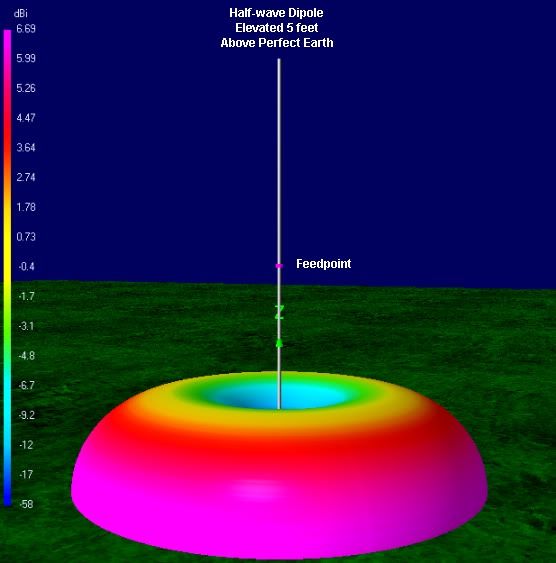

http://i62.photobucket.com/albums/h85/rfry-100/ElPat_V_Dipole.jpg

RF
